Tables and heating plates

We propose you some examples of the Jouanin Engineering production.

The mentioned power and characteristics are for information purposes only. They are specific to each application.

Do not hesitate to contact us to find a solution to your application.

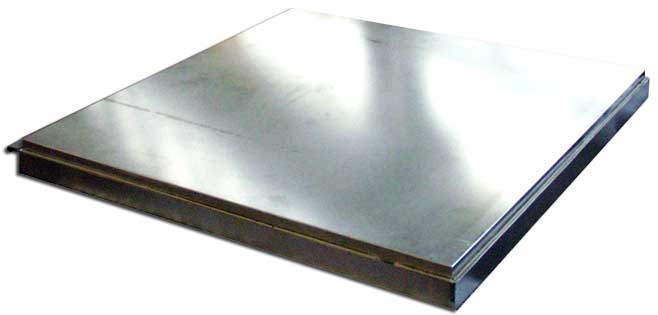

-Heating plates
11.4 kW - Aluminium plate Plate surface : 640 x 680 mm	Details of the setting of one heater
- Heating tables (small volume)
	1.1 kW - Stainless steel plate 120 x 120 mm with incorporated regulation box.

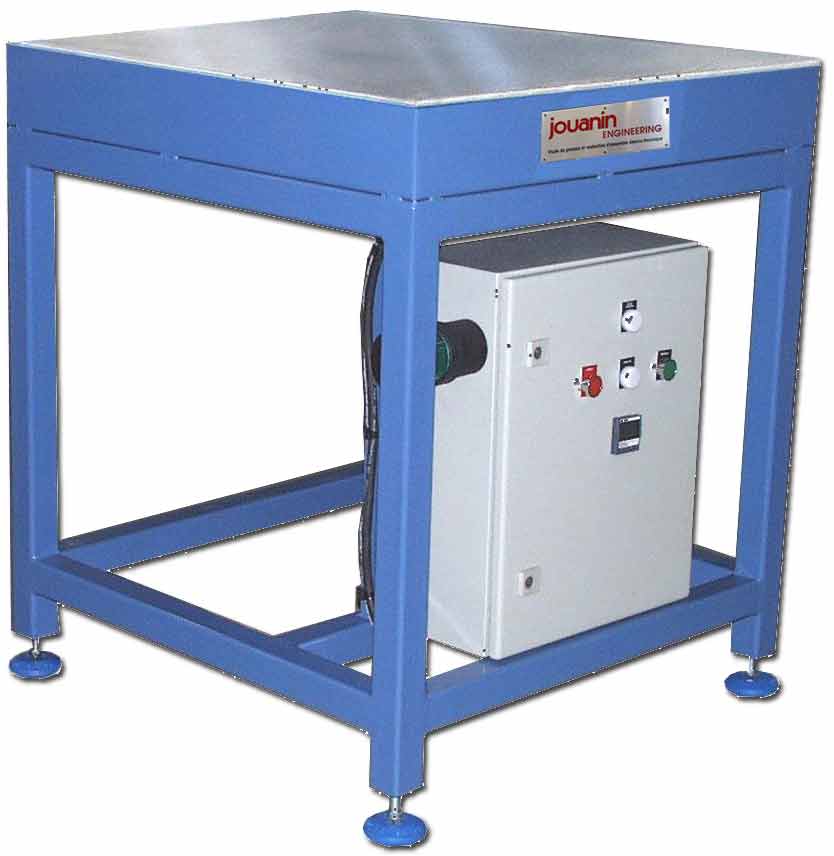

- Heating tables on legs
1.5 kW - Plate 300 x 500 mm	Gamme standard Fiche technique des tables prédéfinies 3 kW - Aluminium plate 750 x 750 mm

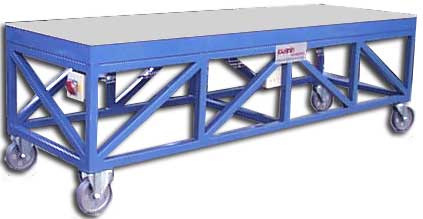

8 kW - Steel plate 3000 x 900 mm Table on wheels – Independent panel control

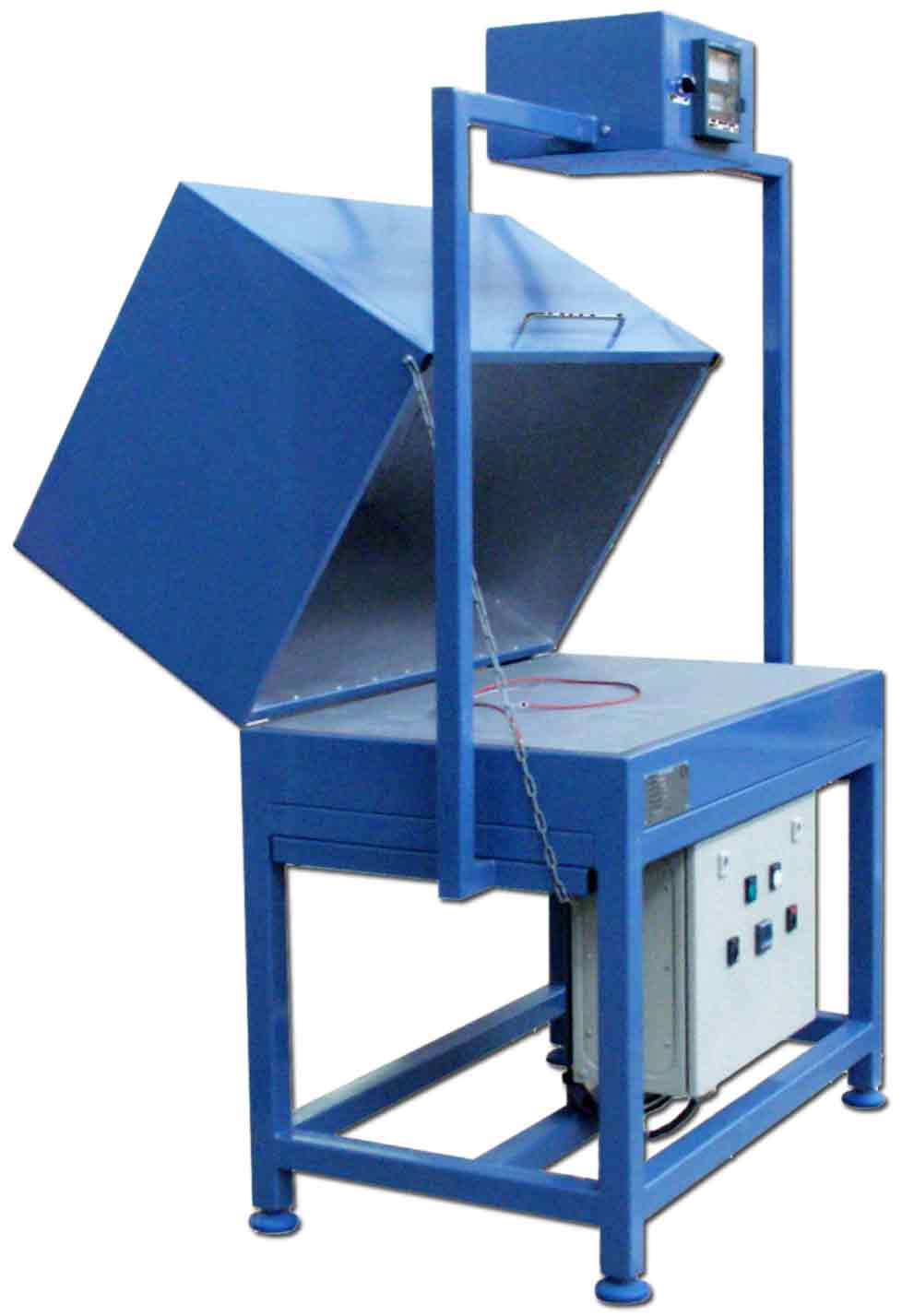

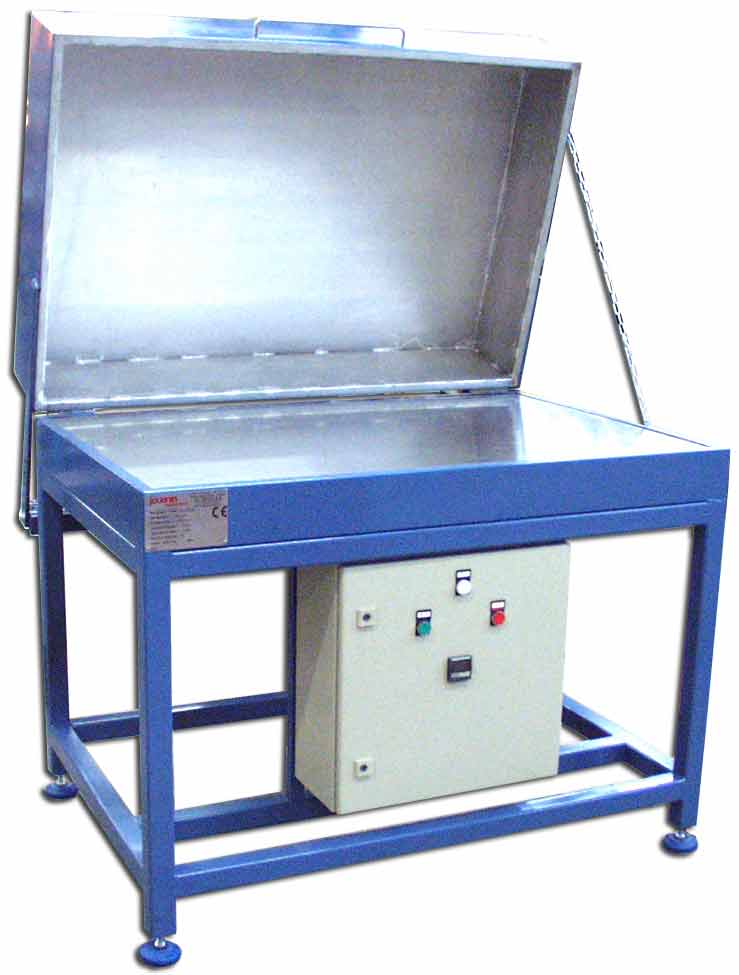

- Heating tables on legs, with cover
4 kW - Steel plate 1000 x 600 mm  Insulated cover and temperature recording device.	6 kW - Aluminium Plate 1200 x 800 mm Insulated cover

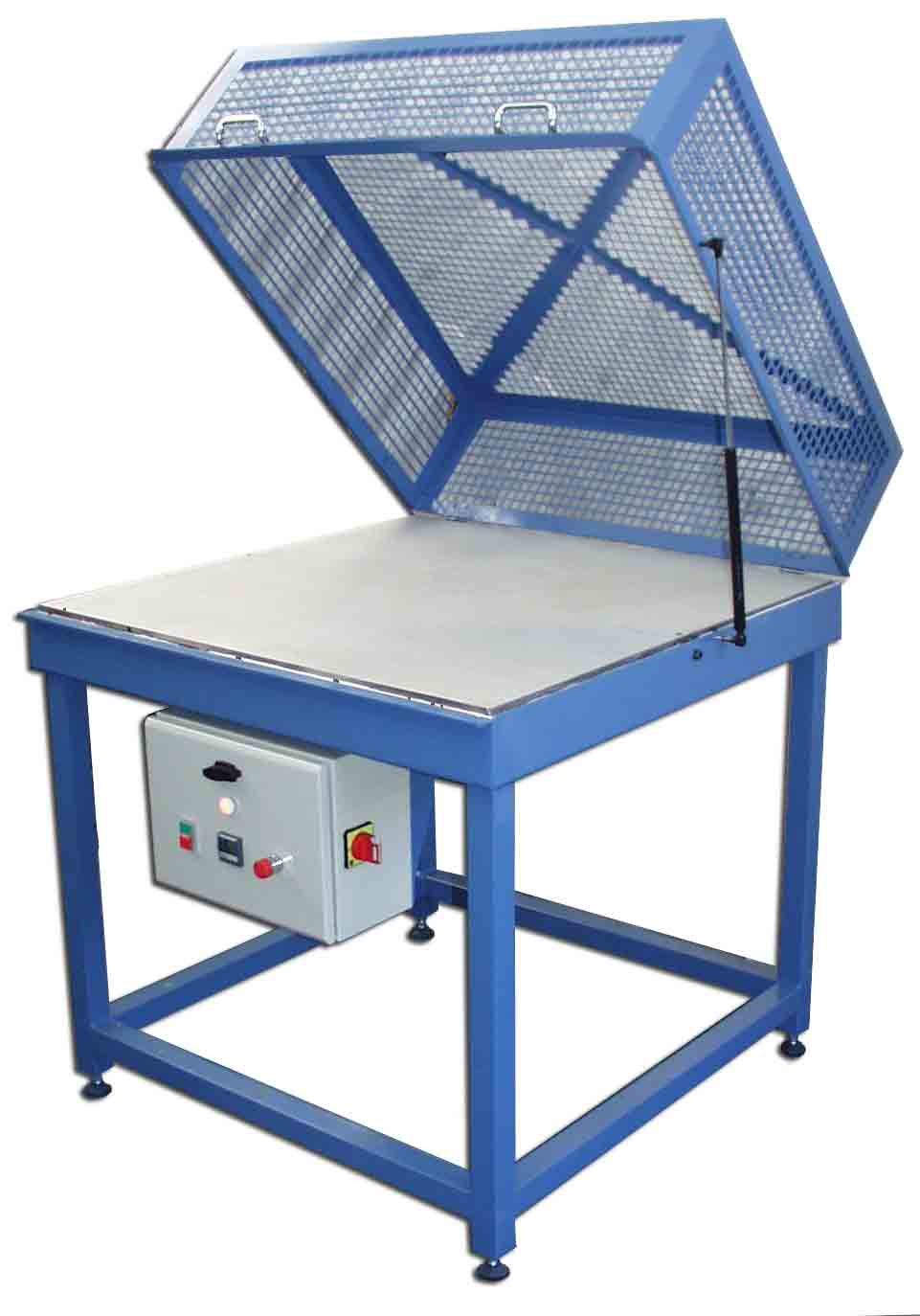

11 kW - Steel plate 1000 x 1000 mm Table equipped with a perforated sheath protection cover – mounted on hinge – assisted with jack..

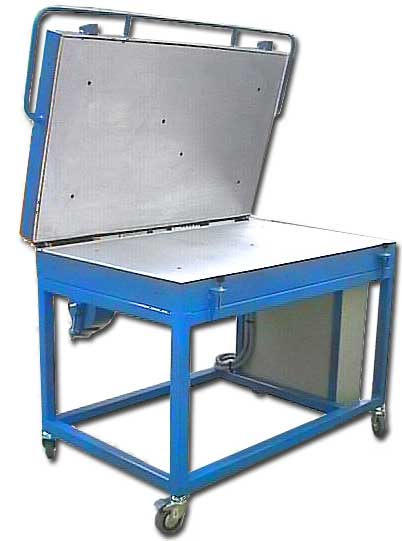

- Double-plates heating tables
	21 kW - 2 independent aluminium plates 1000 x 700 mm Cover equipped with a handle, a counter-weight, setting screw to adapt the working height.
- Fixing
We can also fix your plates or heating tables:  - Fixing of the electrical heating elements  - Substitution of the plates …

• Pricing information request

We propose you to fill in exchange plans that we propose to meet your needs with the most appropriated solution (to be downloaded with Acrobat Reader).
In any case, please fill in the Contact form.
